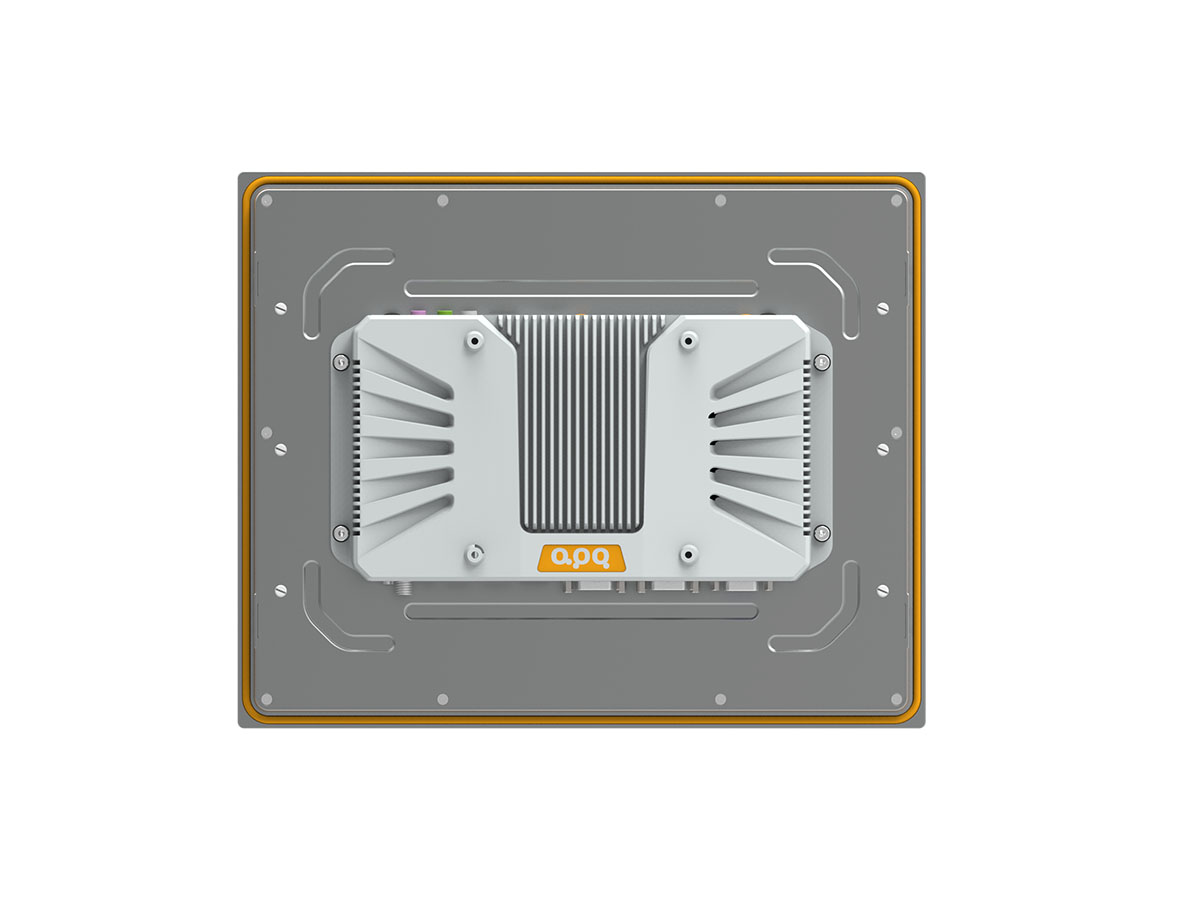

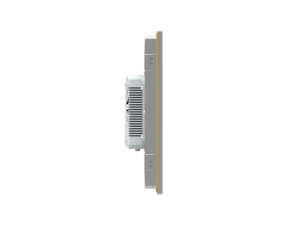

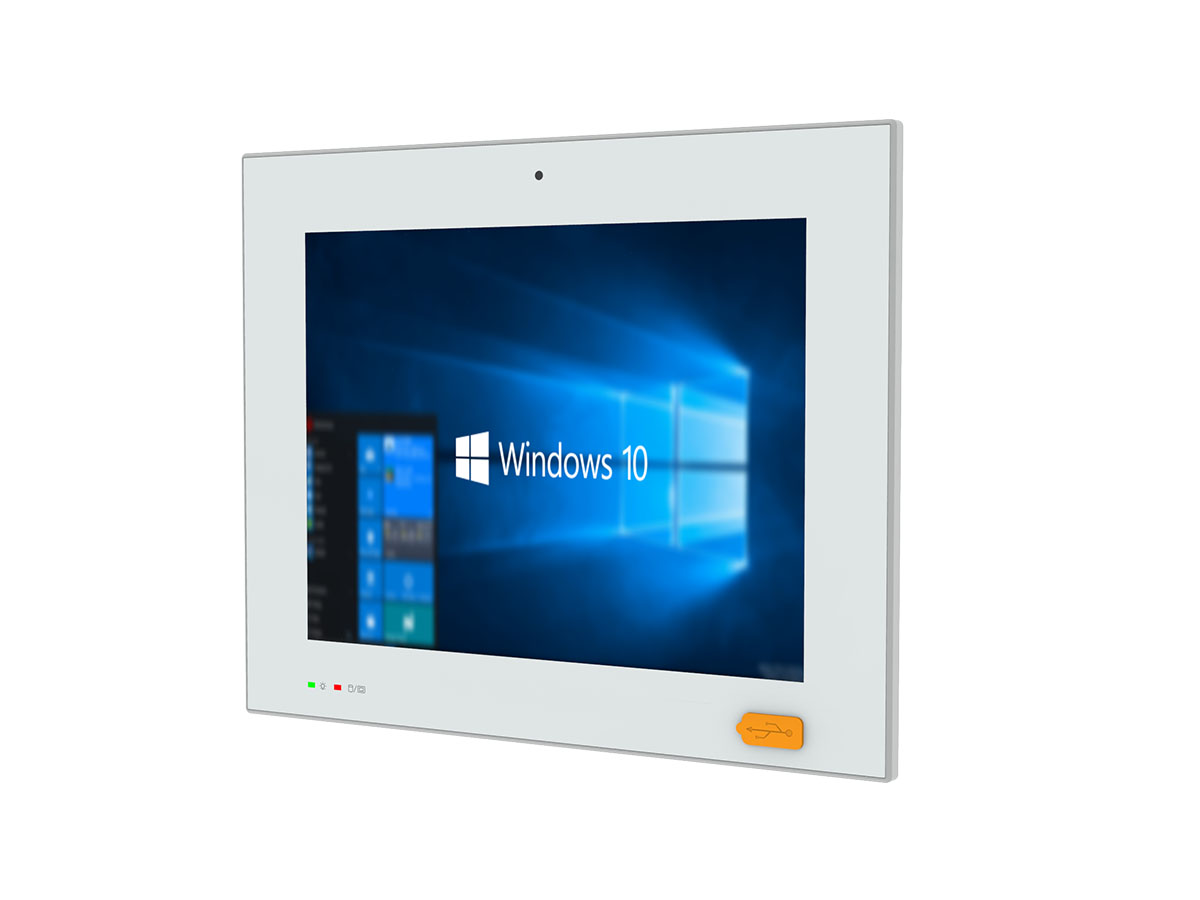

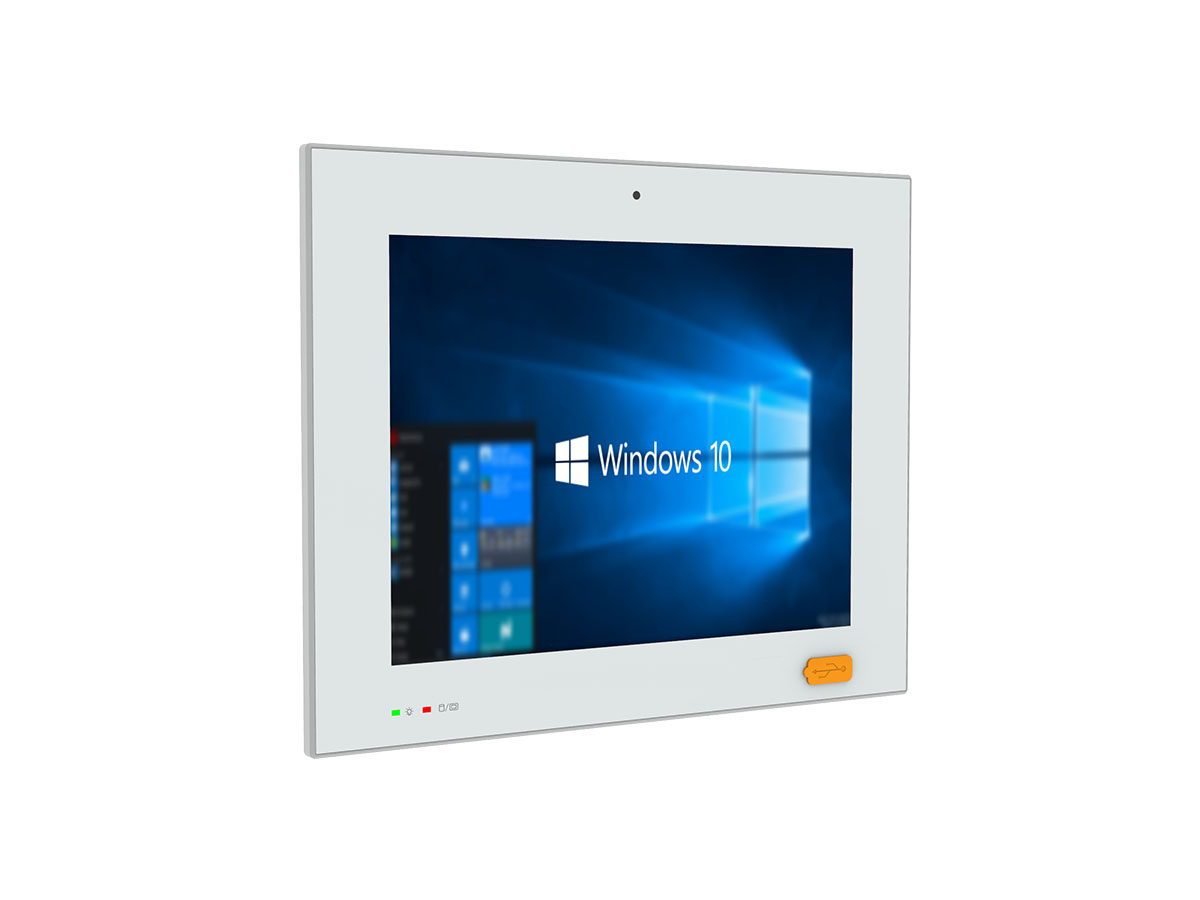

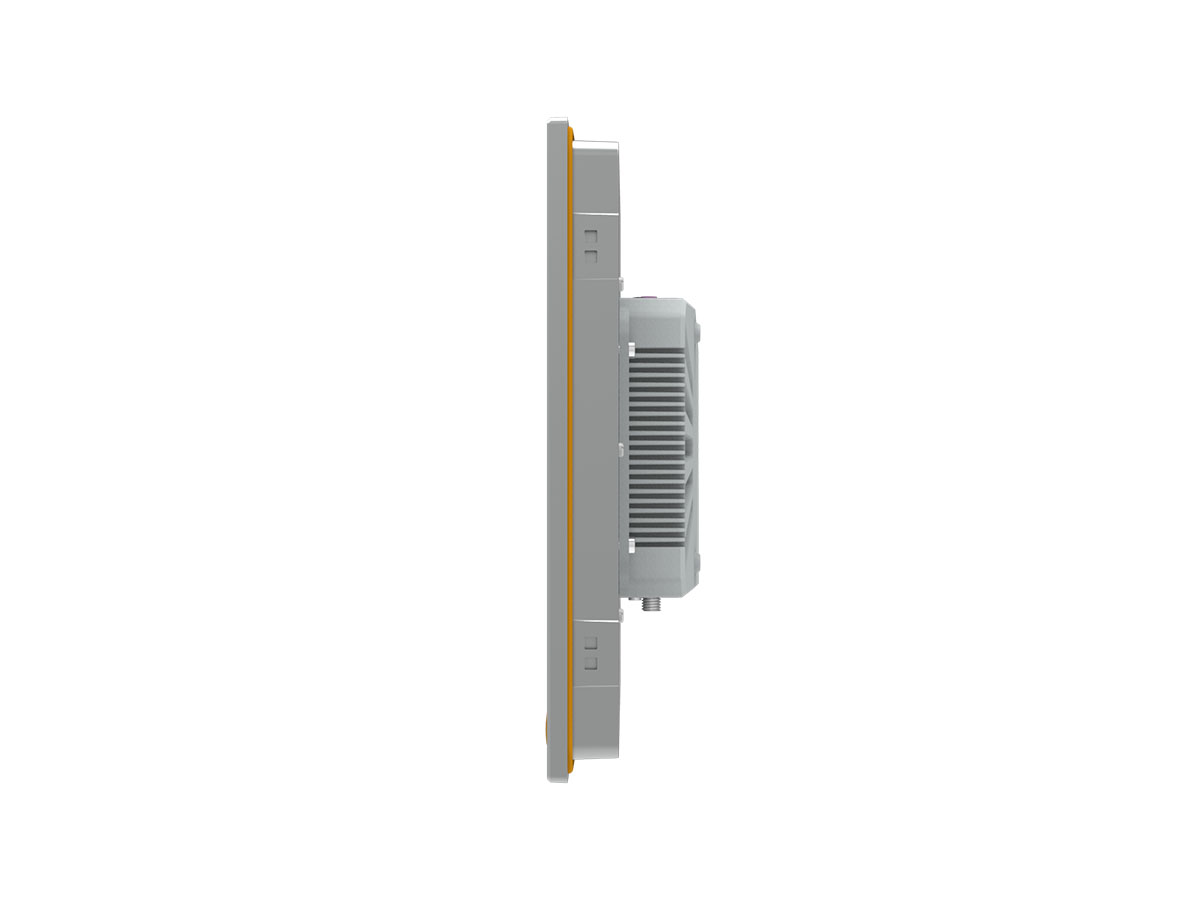

Note: The product image shown above is the PL121CQ-E5 model
阿普奇 PLxxxCQ-E5系列 | 工業一體機/工業平板電腦/電容觸摸屏
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
產品描述
阿普奇全屏電容觸摸屏工業一體機PLxxxCQ-E5系列是一款專為工業應用打造的高性能一體機。用全屏電容觸摸屏設計，帶來直觀、流暢的觸控體驗。模塊化設計，尺寸10.1~21.5″可選，支持方屏/寬屏，滿足不同尺寸和應用需求。前面板滿足IP65要求，具備出色的防塵防水性能，適應各種惡劣環境。集成USB Type-A和信號指示燈，方便數據傳輸和狀態監控。采用Intel? Celeron? J1900超低功耗CPU，確保高效能與低功耗的完美結合。集成雙Intel?千兆網卡，提供高速、穩定的數據傳輸。雙硬盤存儲支持，滿足海量數據的存儲需求。支持APQ aDoor模塊擴展，根據實際需求進行定制和擴展。WiFi/4G無線擴展支持，讓您的設備隨時隨地保持連接。無風扇設計，降低噪音和散熱問題。嵌入式/VESA安裝方式，方便安裝與部署。12~28V直流供電，適應各種電源需求。
選擇阿普奇全屏電容觸摸屏工業一體機PLxxxCQ-E5系列，讓您的工業應用更加智能、高效。
|
Model |
PL101CQ-E5 | PL104CQ-E5 | PL121CQ-E5 | PL150CQ-E5 | PL156CQ-E5 | PL170CQ-E5 | PL185CQ-E5 | PL191CQ-E5 | PL215CQ-E5 | ? | |
|
LCD |
Display Size | 10.1" | 10.4" | 12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.0" | 21.5" | ? |
| Display Type | WXGA TFT-LCD | XGA TFT-LCD | XGA TFT-LCD | XGA TFT-LCD | FHD TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | WXGA TFT-LCD | FHD TFT-LCD | ? | |
| Max.Resolution | 1280 x 800 | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 | ? | |
| Luminance | 400 cd/m2 | 350 cd/m2 | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | ? | |
| Aspect Ratio | 16:10 | 4:3 | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | ? | |
| Viewing Angle | 89/89/89/89° | 88/88/88/88° | 80/80/80/80° | 88/88/88/88° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | ? | |
| Max. Color | 16.7M | 16.2M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | ? | |
| Backlight Lifetime | 20,000 hr | 50,000 hr | 30,000 hr | 70,000 hr | 50,000 hr | 30,000 hr | 30,000 hr | 30,000 hr | 50,000 hr | ? | |
| Contrast Ratio | 800:1 | 1000:1 | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | ? | |
|
Touchscreen |
Touch Type | Projected Capacitive Touch | |||||||||
| Controller | USB Signal | ||||||||||
| Input | Finger/Capacitive Touch Pen | ||||||||||
| Light Transmission | ≥85% | ||||||||||
| Hardness | ≥6H | ||||||||||
|
?Processor System |
CPU | Intel??Celeron??J1900 | |||||||||
| Base Frequency | 2.00 GHz | ||||||||||
| Max Turbo Frequency | 2.42 GHz | ||||||||||
| Cache | 2MB | ||||||||||
| Total Cores/Threads | 4/4 | ||||||||||
| TDP | 10W | ||||||||||
| Chipset | SOC | ||||||||||
| BIOS | AMI UEFI BIOS | ||||||||||
|
Memory |
Socket | DDR3L-1333 MHz (Onboard) | |||||||||
| Max Capacity | 4GB | ||||||||||
|
Graphics |
Controller | Intel??HD Graphics | |||||||||
|
Ethernet |
Controller | 2 * Intel??i210-AT (10/100/1000 Mbps, RJ45) | |||||||||
|
Storage |
SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin) | |||||||||
| mSATA | 1 * mSATA Slot | ||||||||||
|
Expansion Slots |
aDoor | 1 * aDoor Expansion Module | |||||||||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe 2.0x1 + USB2.0) | ||||||||||
|

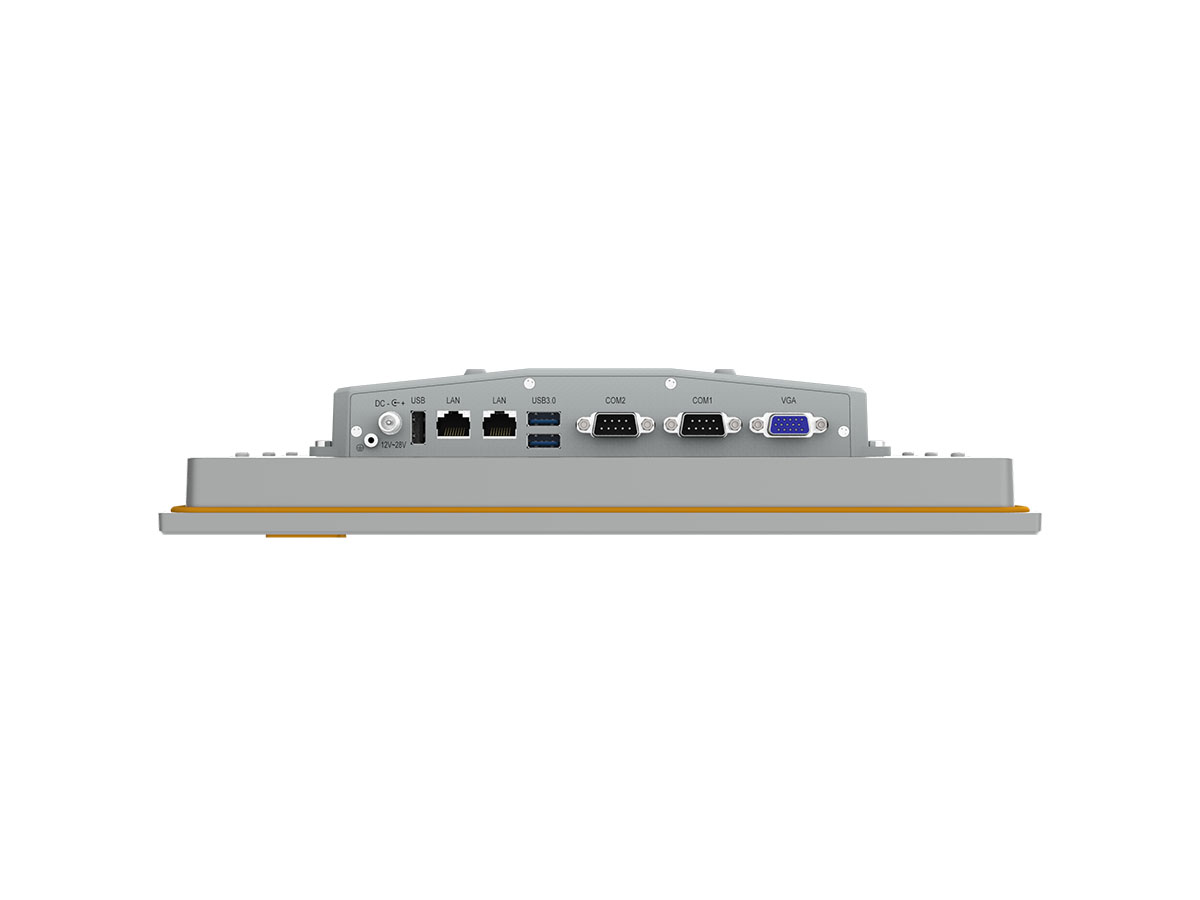

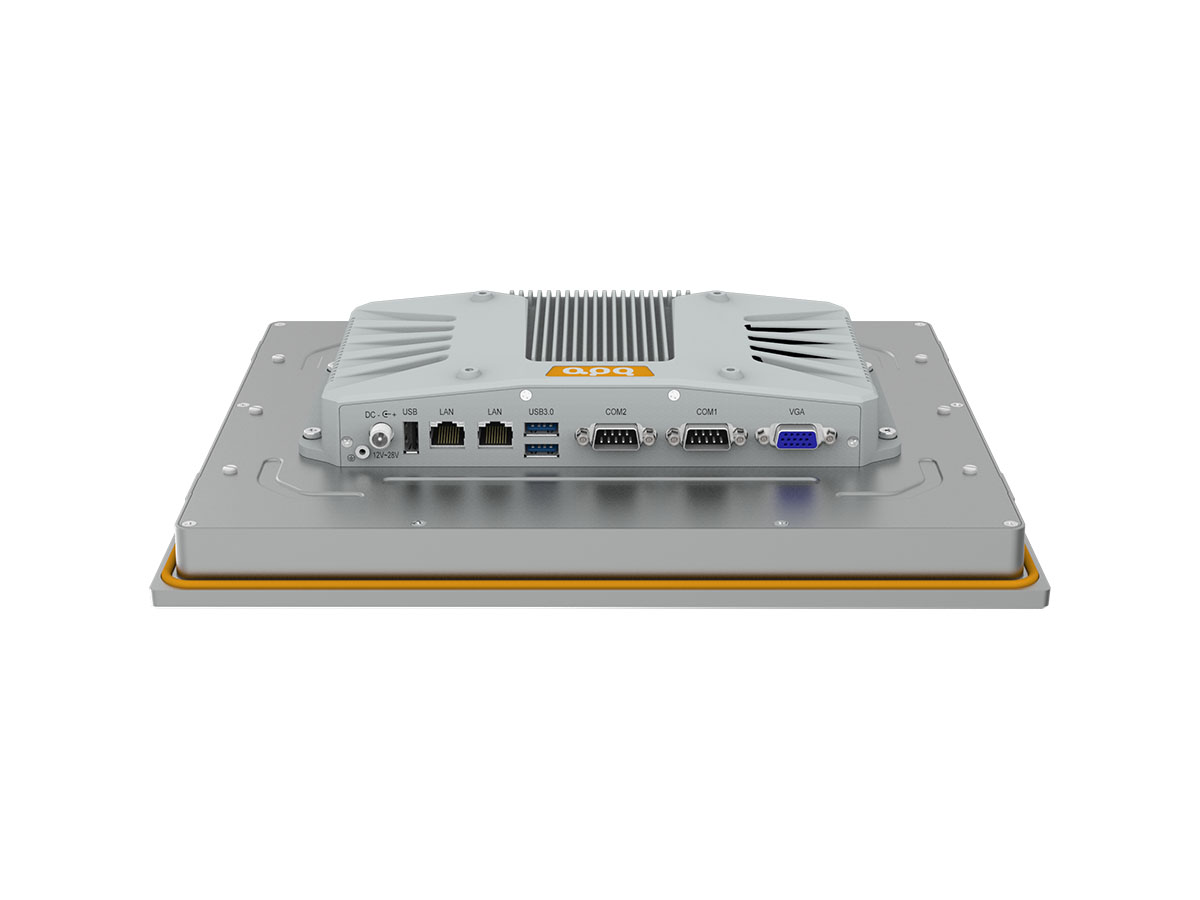

Front I/O |
USB | 2 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
|||||||||
| Ethernet | 2 * RJ45 | ||||||||||
| Display | 1 * VGA: max resolution up to 1920*1200@60Hz | ||||||||||
| Serial | 2 * RS232/485 (COM1/2, DB9/M) | ||||||||||
| Power | 1 * Power Input Connector (12~28V) | ||||||||||
|

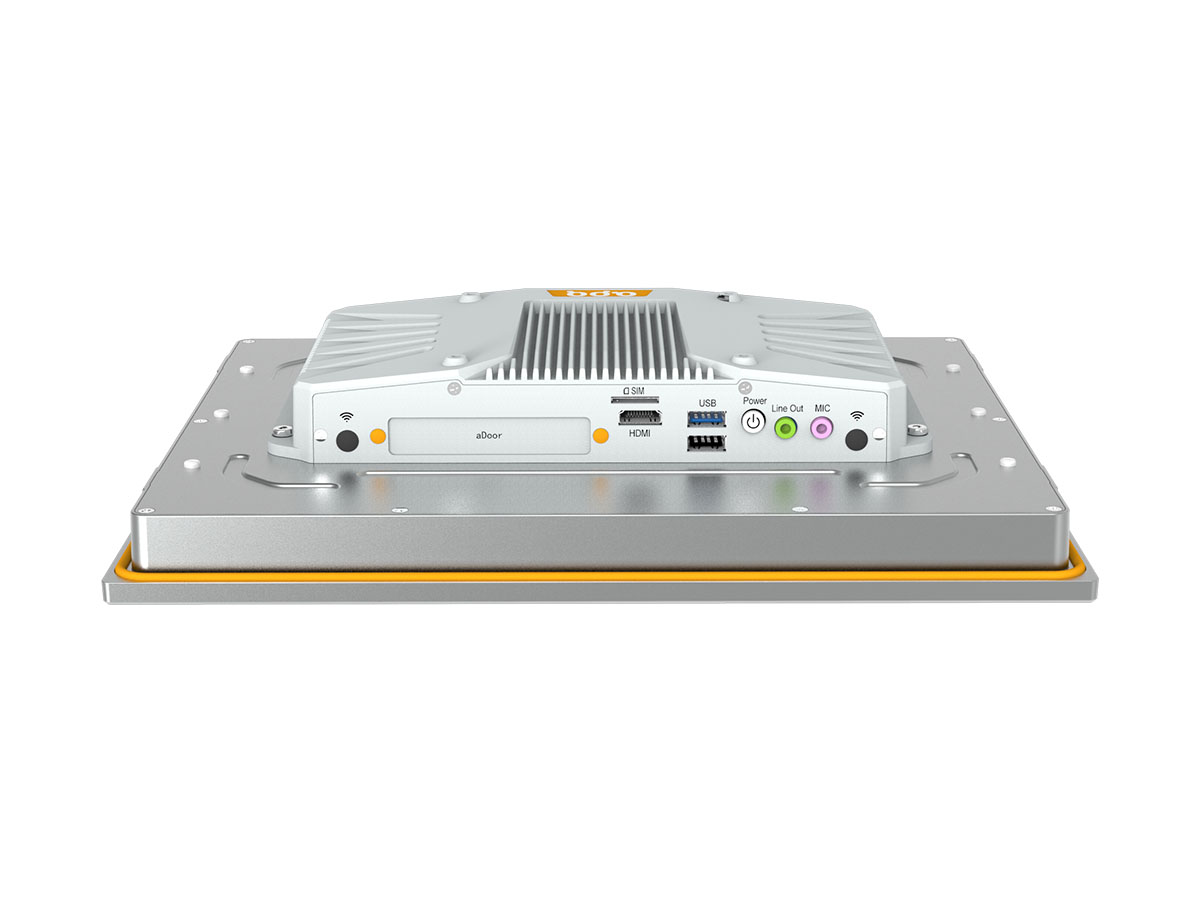

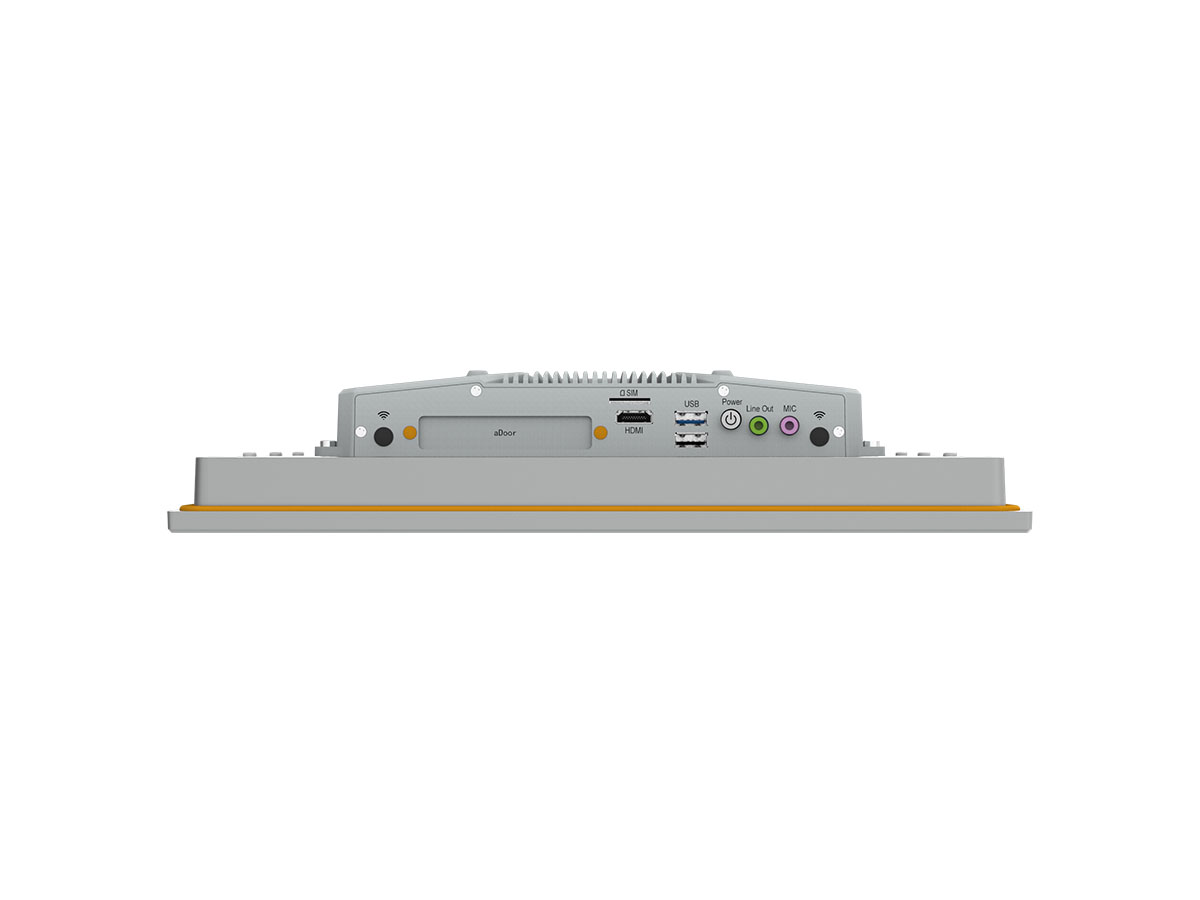

Rear I/O |
USB | 1 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
|||||||||
| SIM | 1 * SIM Card slot (Mini PCIe module provides functional support) | ||||||||||
| Button | 1 * Power Button+Power LED | ||||||||||
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
||||||||||
| Display | 1 * HDMI: max resolution up to 1920*1200 @ 60Hz | ||||||||||
|
Internal I/O |
Front Panel | 1 * TFront Panel (3*USB2.0+Front Panel, 10x2Pin, PHD2.0) 1 * Front Panel (3x2Pin, PHD2.0) |
|||||||||
| FAN | 1 * SYS FAN (4x1Pin, MX1.25) | ||||||||||
| Serial | 2 * COM (JCOM3/4, 5x2Pin, PHD2.0) | ||||||||||
| USB | 2 * USB2.0 (5x2Pin, PHD2.0) 1 * USB2.0 (4x1Pin, PH2.0) |
||||||||||
| Display | 1 * LVDS (20x2Pin, PHD2.0) | ||||||||||
| Audio | 1 * Front Audio (header, Line-Out + MIC, 5x2Pin 2.00mm) 1 * Speaker (wafer, 2-W (per channel)/8-Ω Loads, 4x1Pin 2.0mm) |
||||||||||
| GPIO | 1 * 8bits DIO (4xDI and 4xDO, 10x1Pin MX1.25) | ||||||||||
|
Power Supply |
Type | DC | |||||||||
| Power Input Voltage | 12~28VDC | ||||||||||
| Connector | 1 * DC5525 with lock | ||||||||||
| RTC Battery | CR2032 Coin Cell | ||||||||||
|
OS Support |
Windows | Windows 7/8.1/10 | |||||||||
| Linux | Linux | ||||||||||
|
Watchdog |
Output | System Reset | |||||||||
| Interval | Programmable 1 ~ 255 sec | ||||||||||
|

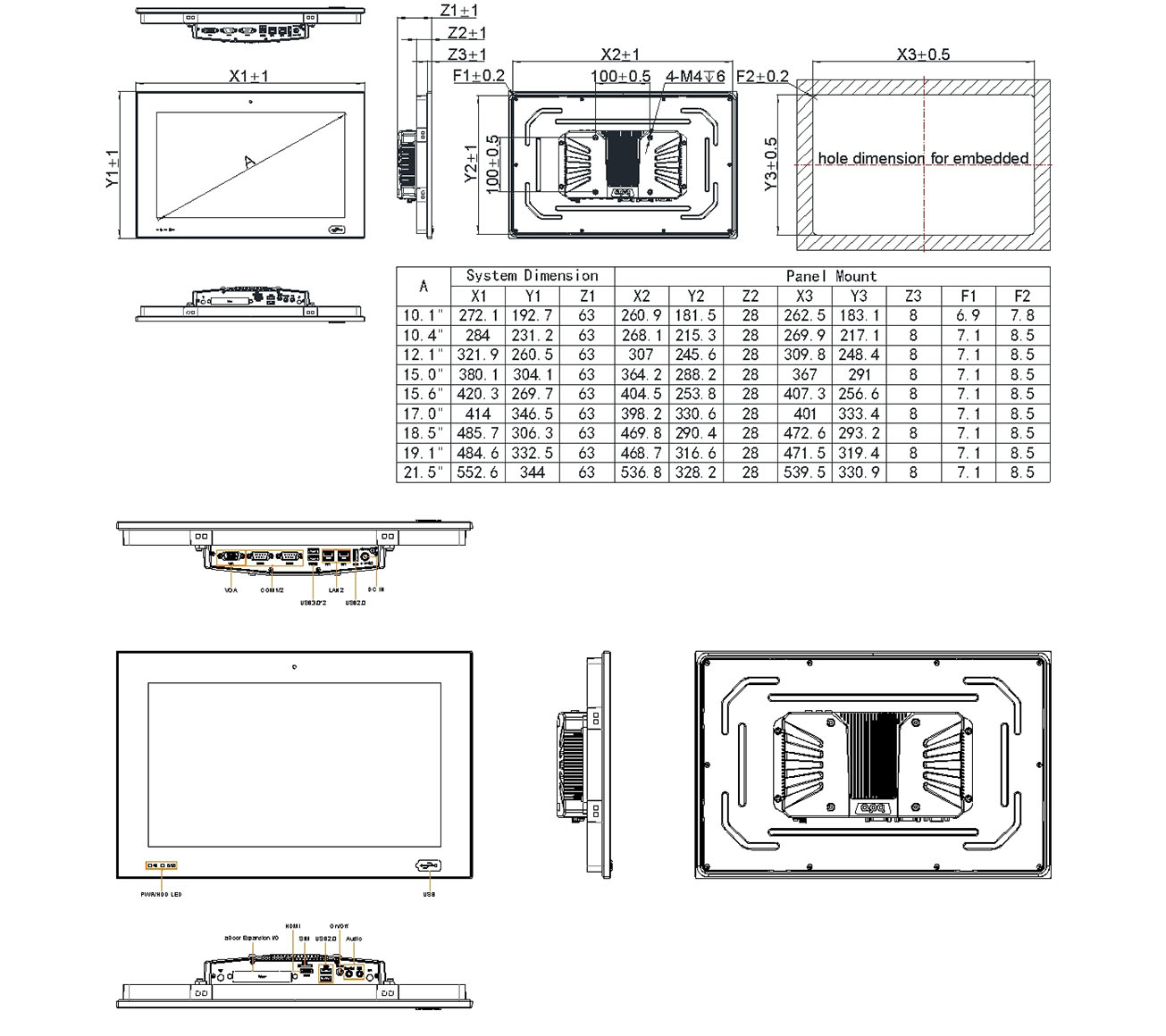

Mechanical |
Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |||||||||
| Mounting | VESA, embedded | ||||||||||
| Dimensions (L*W*H, Unit: mm) |
272.1*192.7 *63 | 284* 231.2 *63 | 321.9* 260.5*63 | 380.1* 304.1*63 | 420.3* 269.7*63 | 414* 346.5*63 | 485.7* 306.3*63 | 484.6* 332.5*63 | 552.6* 344*63 | ? | |
| Weight | Net: 2.7Kg,
Total: 4.9Kg |
Net: 2.8Kg,
Total: 5.1Kg |
Net: 3.0Kg,
Total: 5.4Kg |
Net: 4.4Kg,
Total: 6.9Kg |
Net: 4.3Kg,
Total: 6.8Kg |
Net: 5.2Kg,
Total: 7.8Kg |
Net: 5.1Kg,
Total: 7.8Kg |
Net: 5.7Kg,
Total: 8.6Kg |
Net: 6.0Kg,
Total: 8.9Kg |
? | |
|
Environment |
Heat Dissipation System | Passive heat dissipation | |||||||||
| Operating Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~60℃ | ? | |
| Storage Temperature | -20~60℃ | -20~70℃ | -30~80℃ | -30~70℃ | -30~70℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | ? | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||||||||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||||||||||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||||||||||
-
