產品描述
阿普奇ATX主板ATT-Q670延續ATX主板的標準尺寸、孔位和IO擋板，并具備高性能、多擴展、更可靠等特點，能實現靈活部署，適用于機器視覺、視頻采集、設備控制等高算力、上架式、低成本場景，可為工業行業提供可靠的理想解決方案。
ATT-Q670這款工業主板使用功能強大的Intel??600 Series Chipset Q670，支持Intel LGA1700 12/13代CoreTM/ Pentium??/ Celeron?桌面平臺CPU，提供125W的CPU供電支持。提供了4個DDR4?Non-ECC U-DIMM插槽，頻率最大支持3600MHz，最大支持128GB（單槽32GB），支持雙通道技術，降低了數據傳輸?shù)难舆t。板載2.5G網絡接口以及4個USB3.2 Gen2接口，數據傳輸及連接工業攝像機等各種高速外圍設備時，獲得帶寬性能的成倍提升。包含2個PCIe x16、1個PCIe x8、3個PCIe x4和1個PCI擴展插槽，賦予了其極強的擴展能力。提供2個RS232/RS422/RS485?DB9接口，4個RS232內置插座。后IO提供HDMI和DP雙4K高清數字信號，同時內置VGA插座供客戶選配，支持同步/異步多顯。
ATT-Q670工業主板應用工業級設計方案，具有-20℃～60℃的寬溫工作環境，可在各種復雜工業環境下穩定運行，適用于阿普奇IPC400/IPC350/IPC200，安全可靠，可為工業智能化轉型帶來更多可能。
| Model | ATT-Q670 | |
| ProcessorSystem | CPU | Support Intel??12/13th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1700 | |
| Chipset | Q670 | |
| BIOS | AMI 256 Mbit SPI | |
| Memory | Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Capacity | 128GB,?Single Max. 32GB | |
| Graphics | Controller | Intel??UHD Graphics |
| Ethernet | Controller | 1 * Intel i225-V/LM 2.5GbE LAN Chip (10/100/1000/2500 Mbps)?1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
| Storage | SATA | 4 * SATA3.0 7P Connector, up to 600MB/s, Support?RAID?0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
| Expansion Slots | PCIe slot | 2 * PCIe x16 slot (Gen 5, x16 /NA signal or Gen 4, x8 /x8 signal)1 * PCIe x8 slot (Gen 4, x4 signal)
2 * PCIe x4 slot (Gen 4, x4 signal) 1 * PCIe x4 slot (Gen 3, x4 signal) |
| PCI | 1 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
| M.2 | 1 * M.2 Key-B (USB3.2 Gen 1x1 (co-lay with usb header, default), with 1 * SIM Card, 3042/3052 ) | |
| Rear I/O | Ethernet | 2 * RJ45 |
| USB | 4 * USB3.2 Gen 2x1 (Type-A, 10Gbps,?Each group of two ports Max. 3A, one port Max. 2.5A)4 * USB3.2 Gen 1x1 (Type-A, 5Gbps,?Each group of two ports Max. 3A, one port Max. 2.5A) | |
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz1 * HDMI2.0: max resolution up to 3840*2160 @ 30Hz | |
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Internal I/O | USB | 1 * USB3.2 Gen 1x1 (Vertical Type-A)4 * USB2.0 (One of four shares a signal with the M.2 Key-B, optional, Header) |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Audio | 1 * Front Audio (Line-Out + MIC, Header)1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | |
| Serial | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | |
| PS/2 | 1 * PS/2 (Keyboard & Mouse, wafer) | |
| LPT | 1 * LPT (Header) | |
| SMBus | 1 * SMBus (wafer) | |
| SATA | 4 * SATA3.0 7P Connector | |
| FAN | 1 * CPU FAN (Header)2 * SYS FAN (Header) | |
| Front Panel | 1 * Front Panel (Header) | |
| Power Supply | Type | ATX |
| Connector | 1 * 8P 12V Power (Header)1 * 24P Power (Header) | |
| OS Support | Windows | Windows 10/11 |
| Linux | Linux | |
| Watchdog | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |

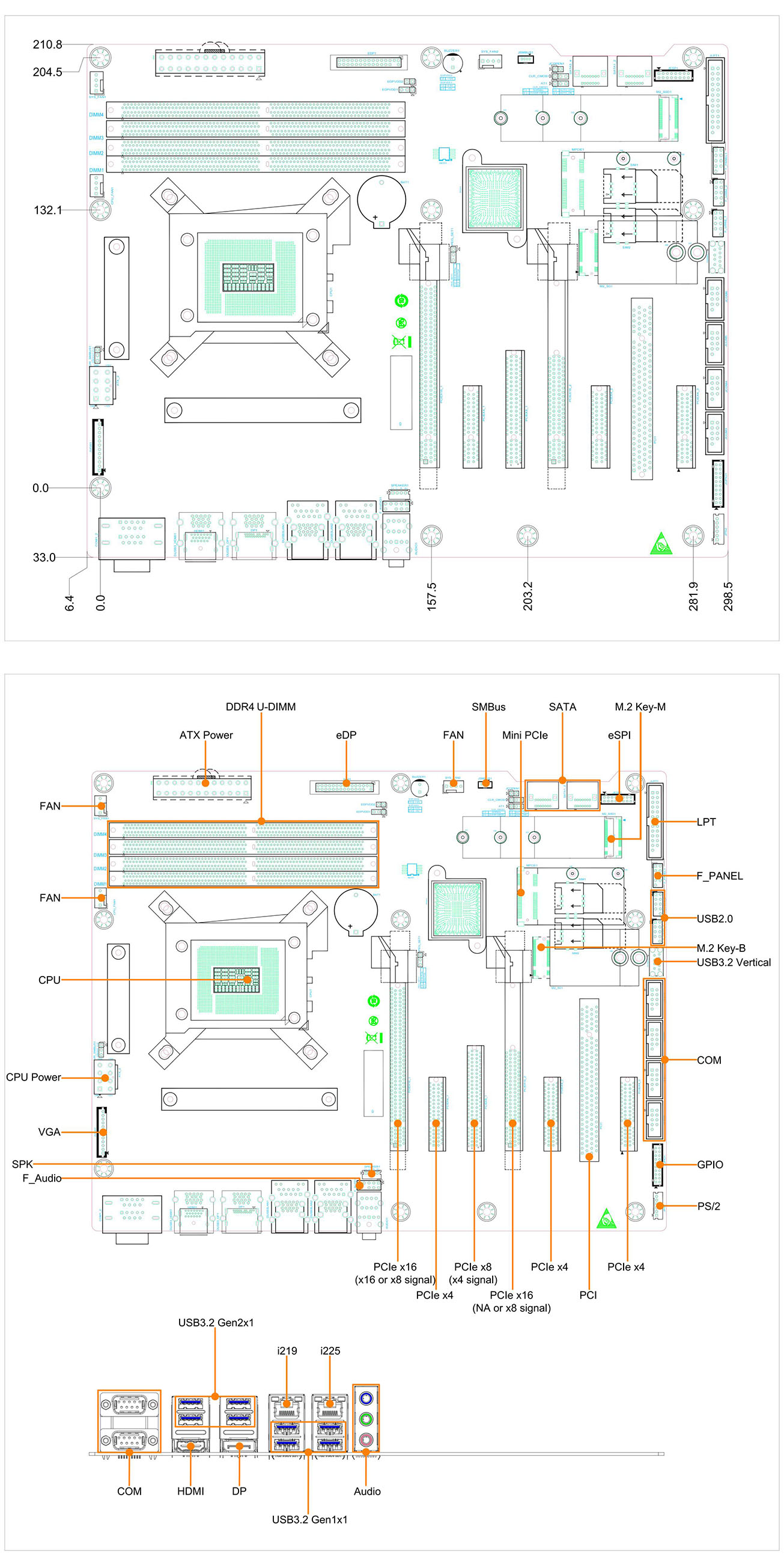

| Mechanical | Dimensions | 304.8 x 243.8 mm (12" x 9.6") |
| Environment | Operating Temperature | -20 ~ 60℃ (Industrial SSD) |
| Storage Temperature | -40 ~ 80℃ (Industrial SSD) | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
