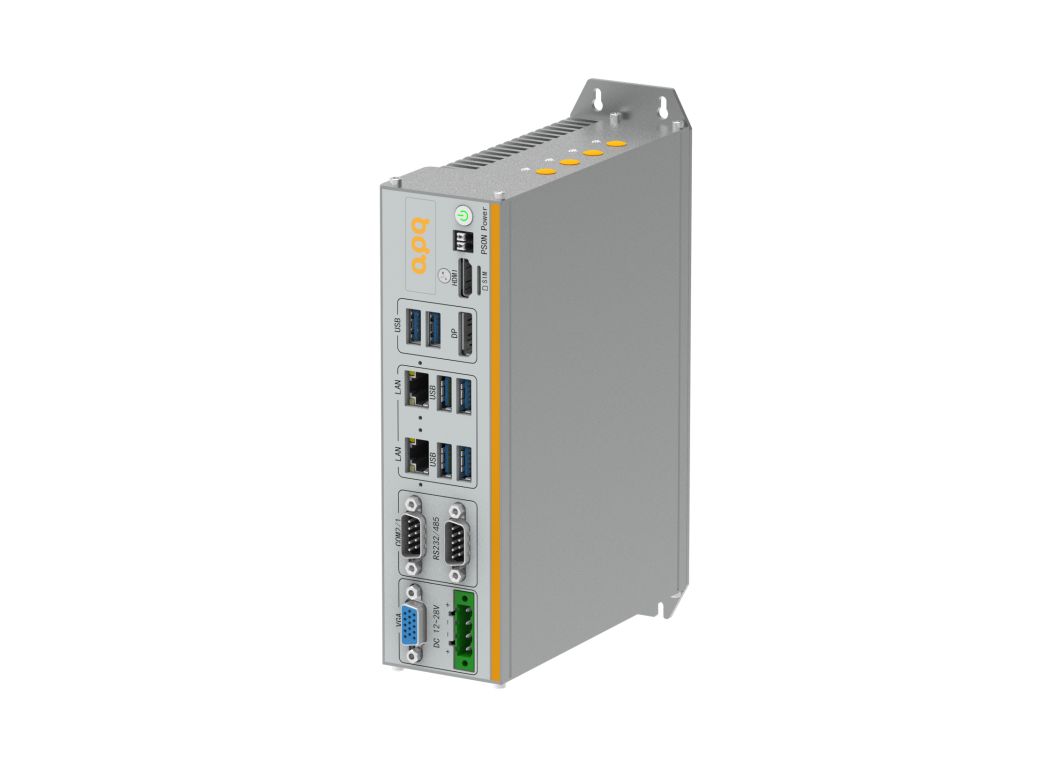

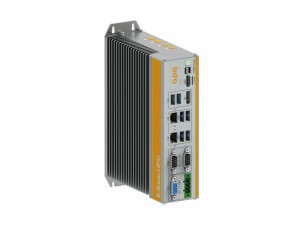

阿普奇 AK6-11th-U | 嵌入式工控機/機器視覺控制器/邊緣計算控制器

特點:

支持Intel? 11th Gen CoreTM i3/i5/i7 -U系列移動CPU
1個DDR4 SO-DIMM插槽，最大支持 32GB
HDMI、DP、VGA三路顯示輸出，
可選8路光電隔離數字輸入, 8路光電隔離數字輸出擴展
可選4路光源輸出擴展

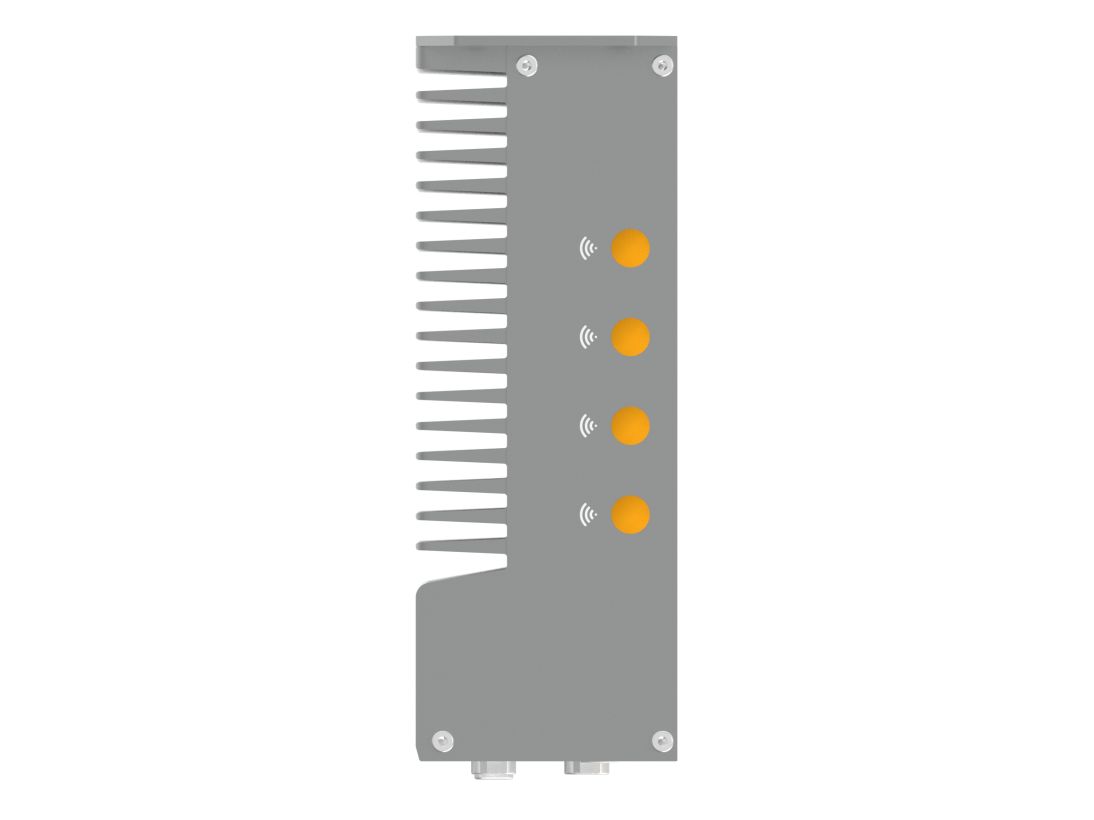

支持WiFi/4G無線擴展
內置USB 2.0 Type-A便于安裝加密狗
支持桌面式、壁掛式、DIN導軌
無風扇被動散熱
12~28V直流供電

遠程管理
狀態監控
遠程運維
安全控制

聯系我們

掃碼即可添加微信，售前客服為您提供咨詢服務

產品介紹

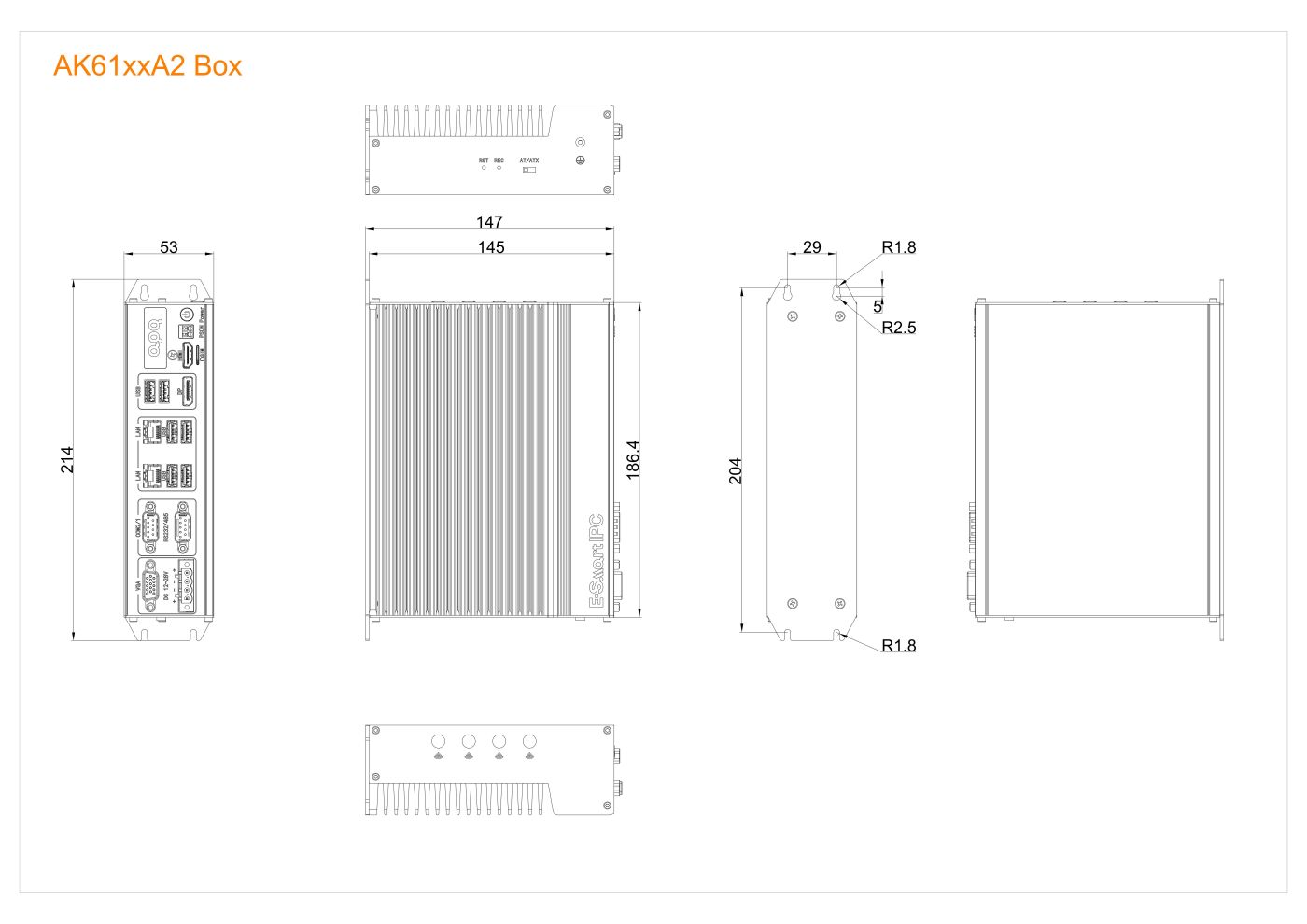

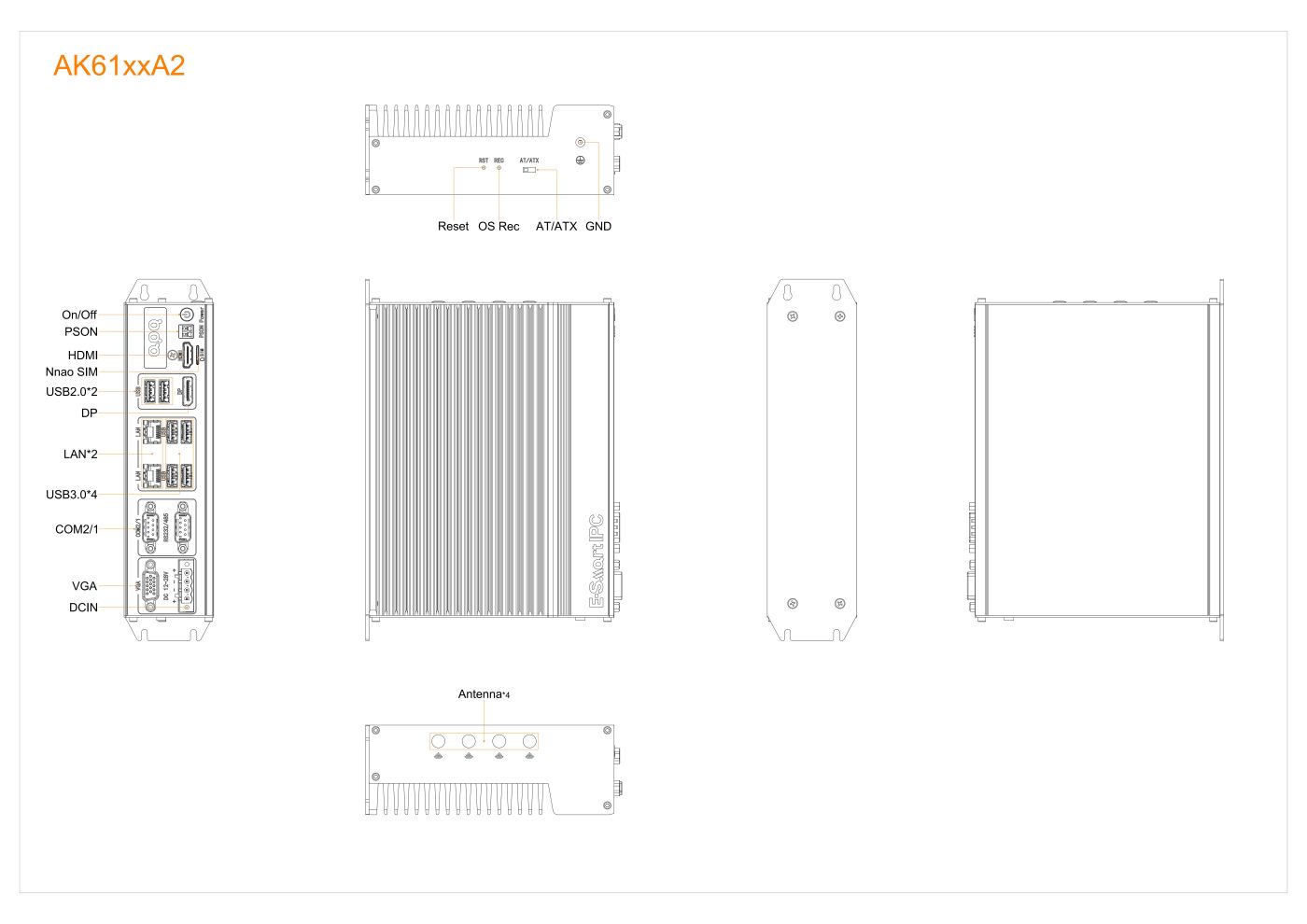

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model		AK61xxA2
CPU	CPU	Intel^??11^th?Generation Core? i3/i5/i7 Mobile -U Processor
CPU	Chipset	SoC
BIOS	BIOS	AMI UEFI BIOS
Memory	Socket	1 * DDR4 SO-DIMM Slot, up to 3200MHz
Memory	Max Capacity	32GB
Graphics	Controller	Intel^??UHD Graphics/Intel^??Iris? Xe Graphics?(Dependent on CPU)
Ethernet	Controller	1 * Intel^??i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^??i219-LM GbE LAN Chip (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)
Expansin	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) 1 * Mini PCIe (USB 2.0, PCIe x1 Gen2 is optional)
Expansin	Optional Cabinet	1E

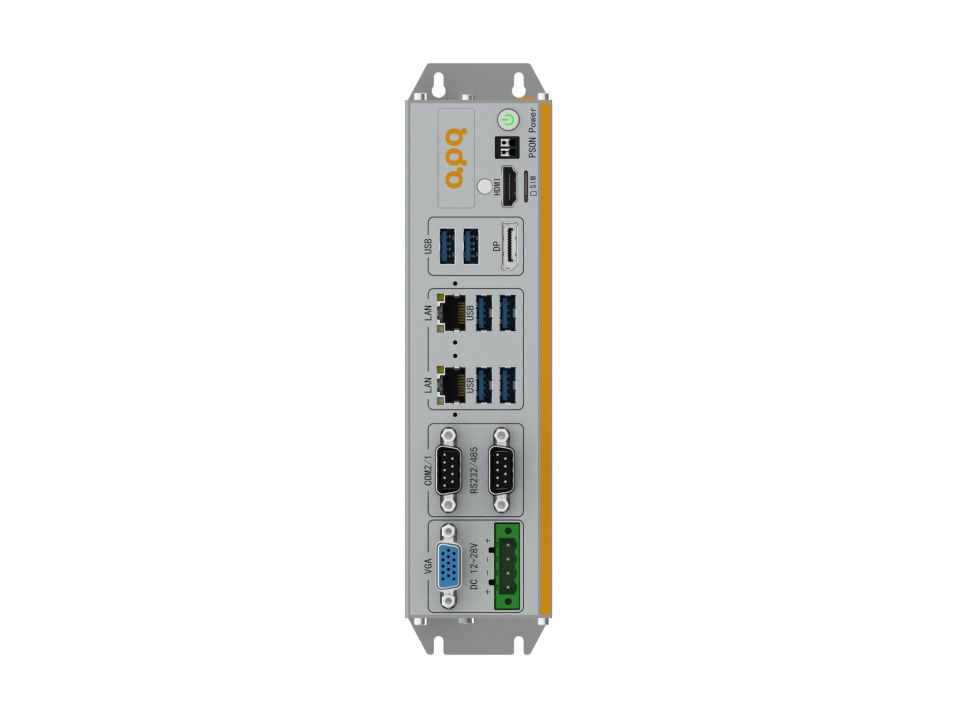

Front I/O	USB	4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A)
	Serial	2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
	Display	1 * HDMI: max resolution up to 40962304 @ 24Hz 1 DP: max resolution up to 40962160 @ 60Hz 1 VGA: max resolution up to 1920*1200 @ 60Hz
	LAN	2 * RJ45
	Power	1 * DC Power Input
	SIM	1 * Nano SIM Card slot (Mini PCIe module provide functional support)
	Button	1 * Power Button + Power LED 1 * PS_ON Connector

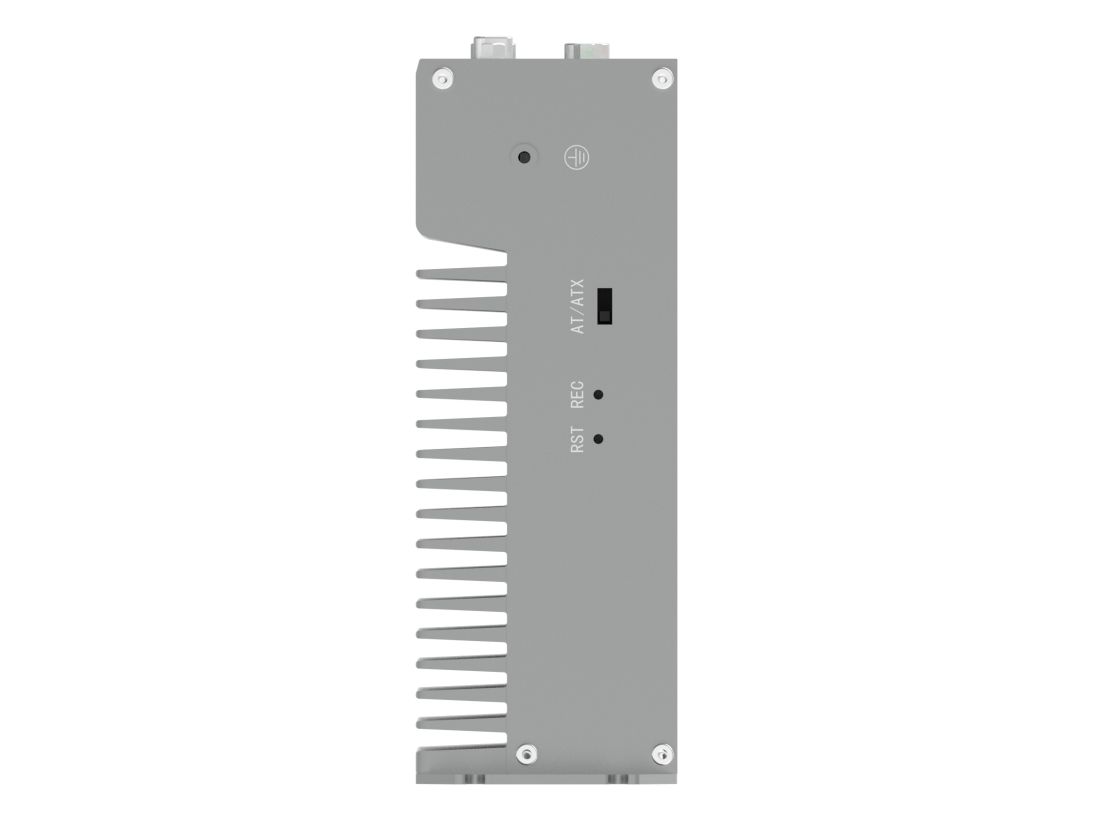

Bottom I/O	Switch	1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
Bottom I/O	Button	1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery)
Power Supply	Type	DC
	Power Input Voltage	12 ~ 28VDC Note：When using the light source, 24V input must be used.
	Connector	1 * 4Pin Power Input Connector (P= 5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable via Software from 1 to 255 sec

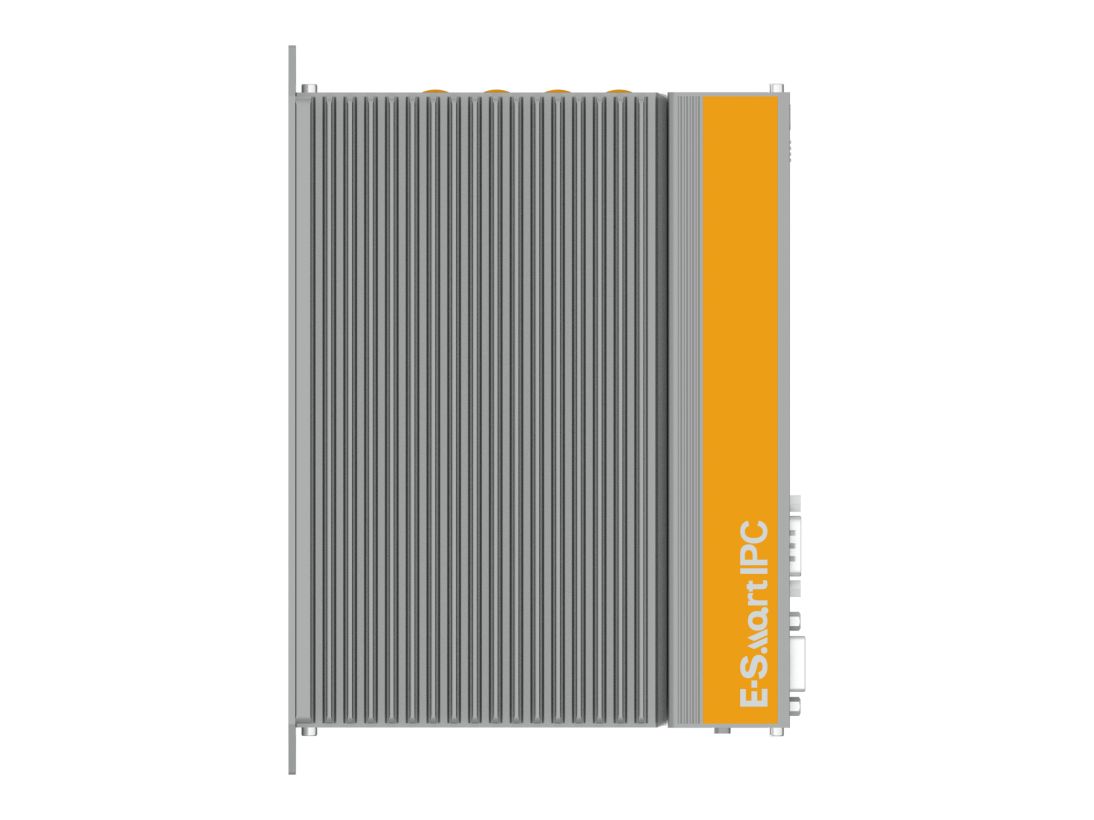

Mechanical	Enclosure Material	Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC
	Dimensions	53mm(L) * 145mm(W) * 186.4mm(H)

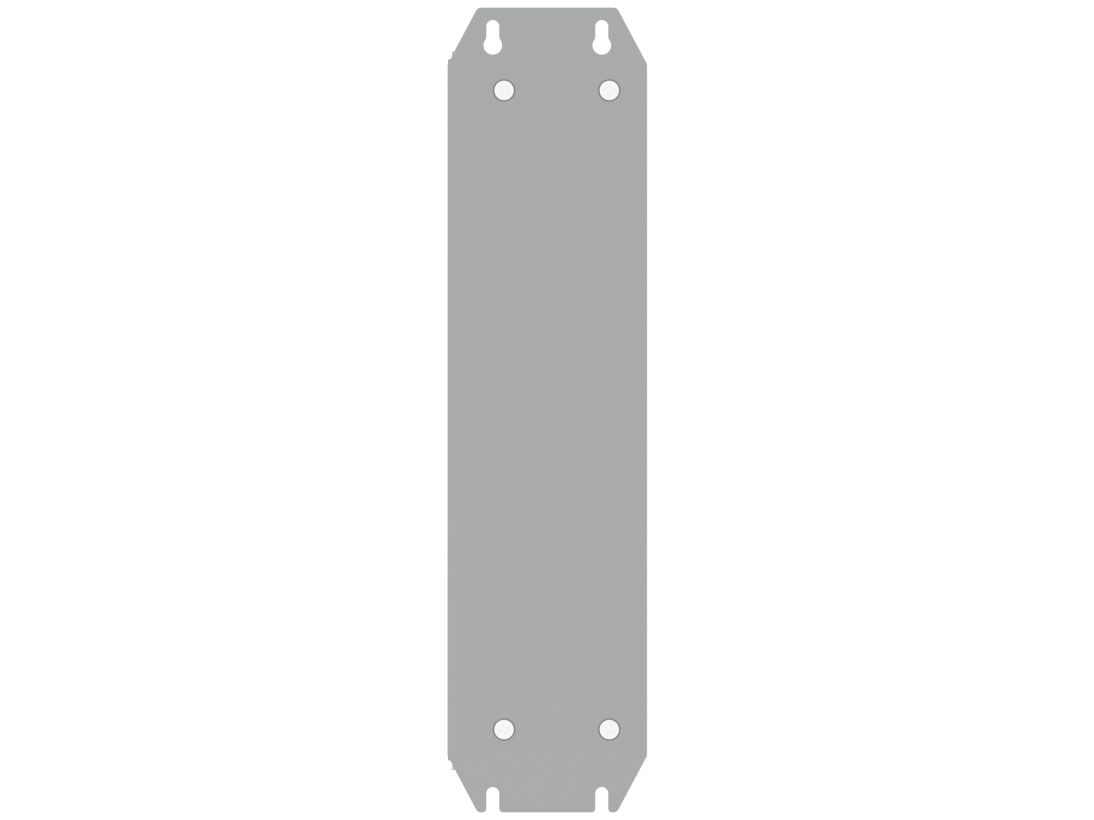

	Mounting	Wall mounted, DIN, Desktop
Environment	Heat Dissipation System	Passive Heat Dissipation
	Operating Temperature	-20~60℃?(Industrial SSD)
	Storage Temperature	-40~80℃?(Industrial SSD)
	Relative Humidity	5 to 90% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
